ZIG-100 MODULE


ZIG-100, which is composed of  MCU and Zigbee IC, is a small PAN (Personal Area Network) module that uses 2.4GHz frequency to enable UART communication between the modules.

﹥ SPECIAL FEATURES

ZIG-100 is sold as a set. The ZIG-100 module can be fixed onto the controller without separately giving it an ID. The ZIG-100 which is used to soldiered on to the controller has been changed by simply fitting it in. Same applies when using in the CM-5, CM-2+ and ZIG2Serial.

﹥ INCLUDES :
- ZIG-100 : 2 pcs (1 set)

﹥ INTERFACE
Interface through UART, enabling environment, date transmit/receive functions.Supports various Baud Rate as well.
- Initial Network Speed  : 57600bps
- Maximum Network Speed  : 115200bps
- Behavior Mode : 1 : 1 Communication Mode, 1 : 竘 Communication Mode, 竘 : 竘 Communication Mode

﹥ POWER SUPPLY
ZIG-100 work at 2.7V~3.6V. but for safety we recommend using 3.3V regulator. Also, at 3.3V it consumes about 30mA electric current.

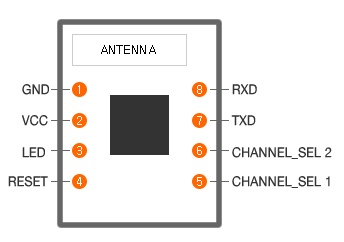

 ﹥ ZIG-100 PIN ARRANGEMENT

﹥ SIZE
Length x Width x Height : 26.5mm x 19mm x 12mm


► The ZIG-100 can be installed in the CM-5 and CM-2+ for use.
